Load Measuring and Monitoring
Monitor Systems Engineering and Measurement Technology Northwest work in partnership to provide a comprehensive and complete service in Load Monitoring and Load Measuring Equipment. As a combined strength, our team of experienced engineers can DESIGN, MANUFACTURE, SUPPLY, INSTALL and COMMISSION Load Monitoring and Load Measuring Equipment.
Monitor Systems Engineering designs and manufactures rugged, multi-channel winch line control, wireline monitoring and tensiometer instrumentation used in demanding commercial and oceanographic applications ranging across polar to tropical situations. Monitor Systems Engineering products are used to control and monitor speed, payout, and tension - both cable and chain - in single/multi winch systems used for equipment deployment, barge positioning, fixed-place mooring, drawbridge controls, and wherever accurate and reliable line control is required.
Advanced Range of Line Control Instruments and Displays
- Advanced signal processing capability
- Single, dual, quad and multi tension display models
- Advanced range of software for interface computer data collection / analysis
- Rugged construction and reliability

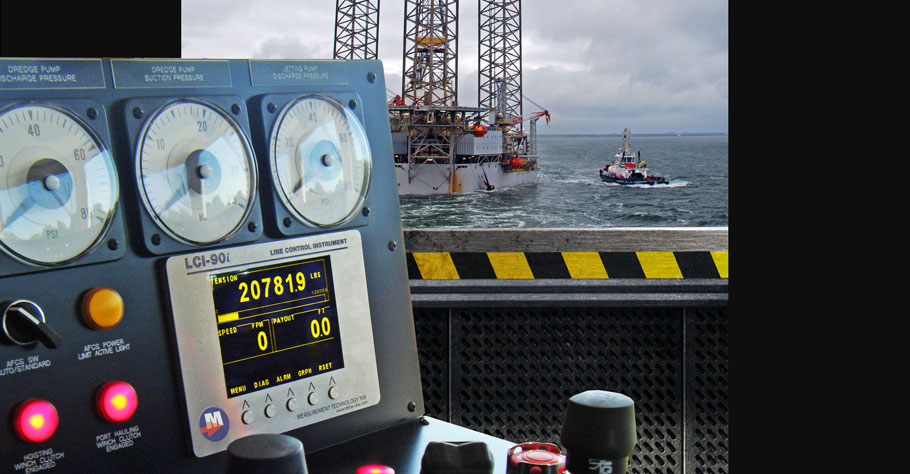

Precise Payout, Tension and Scope Monitoring Displays
- Clear real-time winch data
- 320 x 240 EL (Electroluminescent) display readable in all conditions (optional colour TFT)
- Full programmability via English language menus
- Six alarms, independently linked to any high/low set-point parameters
- Configurable parameter position, scale and units
- Three modes of analog sensor calibration
- On screen calibration, diagnostics and configuration security
- Stainless steel, watertight, enclosures and mounting accessories
Winch DAC Software
- Data control, processing and analysis
- Single or multi winch applications
- Full programmability via English language menus
- Requires use of local line control instrument (LCI-90i) and a serial converter or an Ethernet connection
- User friendly Windows based software
- Data files easily exported into Excel for post-analysis

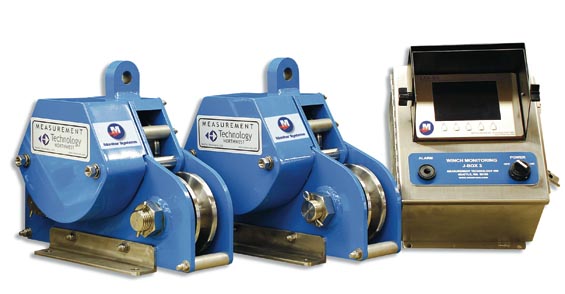

Running Line Tensiometers
- Quick, straightforward installation
- Rugged, compact and accurate cable monitoring
- Tension and payout sensors located for easy access
- High payout / scope line speed capability
- Standard sizes rated from 20 KIPS to over 800 KIPS
- Smaller capacity units also available
- Alloy steel frame with marine grade coating
- 316 stainless steel for fasteners, pins and shafts
- 17-4 hardened stainless steel sheaves
- Sealed double roller bearings
- Nema 4X stainless steel enclosure
